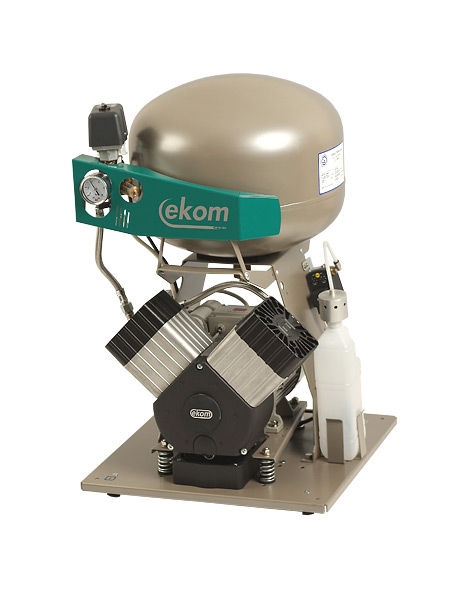

Oil-less compressor EKOM of the line DK50 2V is the source of clean, presssed, oil-free air designed for driving of dental appliances and equipment. With regard to its parameters and capacity of the air tank of 25 litres is suitable for supplying of one dental unit or devices in dental laboratories. Air produced by oil-free compressor provides a higher degree of hygiene and quality of work of the dentist and does not pollute the working environment by heterogeneous substances.
| Model | Description | |
| DK50 2V | Without box | |
| DK50 2V M | Including adsorption air dryer | |
| DK50 2V S | Including soundproofing box | |
| DK50 2V SM | Including adsorption air dryer and soundproofing box |
For technical specifications of each model, please see below.
| Technical specification | DK50 2V | DK50 2V S | DK50 2V /M | DK50 2V S/M |
|---|---|---|---|---|
| Number of dental units | 2 | 2 | 2 | 2 |
| Nominal voltage | 230V/ 50 (60) Hz | 230V/ 50 (60) Hz | 230V/ 50 (60) Hz | 230V/ 50 (60) Hz |
| 3x400V/ 50 Hz | 3x400V/ 50 Hz | 3x400V/ 50 Hz | 3x400V/ 50 Hz | |
| Max. curren | 7,5 (8,5) A | 7,7 (8,7) A | 7,8 (8,8) A | 8 (9) A |
| 3,6 A | 3,8 A | 3,9 A | 4,1 A | |
| Output of the motor | 1,1 kW | 1,1 kW | 1,1 kW | 1,1 kW |
| Compressor efficiency | 140 l.min– 1/ 5 bar | 140 l.min– 1/ 5 bar | 140 l.min– 1/ 5 bar | 140 l.min– 1/ 5 bar |
| Displacement | 200 l.min– 1 | 200 l.min– 1 | 200 l.min– 1 | 200 l.min– 1 |
| Working pressure of compressor * | 5 – 7 bar | 5 – 7 bar | 5 – 7 bar | 5 – 7 bar |
| Air tank capacity | 25 lit. | 25 lit. | 25 lit. | 25 lit. |
| Mode of operation | S1-100% | S1-100% | S3-60% | S3-60% |
| Degree of air drying | - | - | atmospheric dew point -20oC | atmospheric dew point -20oC |
| Noise level | ≤ 71 dB A | ≤ 53 dB A | ≤ 72 dB A | ≤ 54 dB A |
| Weight | 52 kg | 88 kg | 62 kg | 99 kg |
| Dimensions (w x d x h) | 460x460x690 mm | 560x665x860 mm | 460x535x690 mm | 560x665x860 mm |
