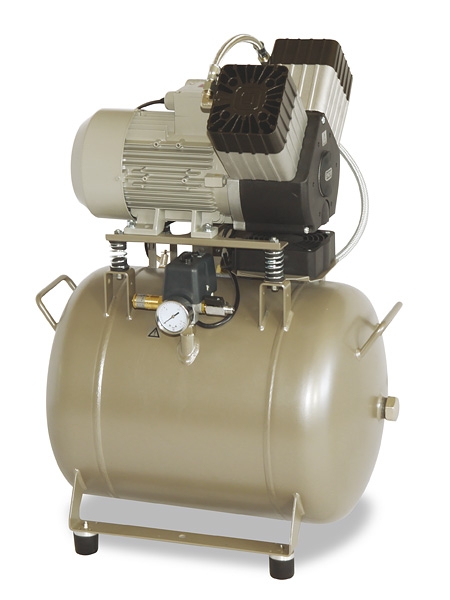

Oil-less compressor EKOM of the line DK50 2V/50 is the source of clean, presssed, oil-free air designed for driving of dental appliances and equipment. With regard to its parameters and capacity of the air tank of 50 litres is suitable for supplying of one dental unit or devices in dental laboratories. Air produced by oil-free compressor provides a higher degree of hygiene and quality of work of the dentist and does not pollute the working environment by heterogeneous substances.
| Technical specification | DK50 2V/50 | DK50 2V/50S | DK50 2V/50/M | DK50 2V/50S/M |
|---|---|---|---|---|
| Number of dental units | 2 | 2 | 2 | 2 |
| Nominal voltage | 230V/ 50 (60) Hz | 230V/ 50 (60) Hz | 230V/ 50 (60) Hz | 230V/ 50 (60) Hz |
| 3x400V/ 50 Hz | 3x400V/ 50 Hz | 3x400V/ 50 Hz | 3x400V/ 50 Hz | |
| Max. curren | 7,5 (8,5) A | 7,7 (8,7) A | 7,8 (8,8) A | 8 (9) A |
| 3,6 A | 3,8 A | 3,9 A | 4,1 A | |
| Output of the motor | 1,1 kW | 1,1 kW | 1,1 kW | 1,1 kW |
| 1,5 kW | 1,5 kW | 1,5 kW | 1,5 kW | |
| Compressor efficiency | 140 l.min– 1/ 5 bar | 140 l.min– 1/ 5 bar | 140 l.min– 1/ 5 bar | 140 l.min– 1/ 5 bar |
| Displacement | 200 l.min– 1 | 200 l.min– 1 | 200 l.min– 1 | 200 l.min– 1 |
| Working pressure of compressor ** | 6 – 8 bar | 6 – 8 bar | 6 – 8 bar | 6 – 8 bar |
| Air tank capacity | 50 lit. | 50 lit. | 50 lit. | 50 lit. |
| Mode of operation | S1-100% | S1-100% | S1-100% | S3-60% |
| Degree of air drying | - | - | atmospheric dew point -20oC | atmospheric dew point -20oC |
| Noise level | ≤ 71 dB A | ≤ 56 dB A | ≤ 72 dB A | ≤ 57 dB A |
| Dimensions (w x d x h) | 595x475x770 mm | 750x690x1015 mm | 595x580x770 mm | 750x690x1015 m |
*Other working pressures on demand
| Model | Description | |
| DK50 2V/50 | ||
| DK50 2V/50 M | Including adsorption air dryer | |
| DK50 2V/50 S | Including soundproofing box | |
| DK50 2V/50 SM | Including adsorption air dryer and soundproofing box |
