The Parker domnick hunter H-MD ultra high purity hydrogen gas generators offer the optimum combination of safe operation, reliability, performance and low cost of ownership.
Utilizing field proven PEM cell technology, hydrogen is produced on demand from deionised water and electricity, at low pressure and with minimal stored volume. Innovative control software allows unrivaled operational safety and reliability.
The H-MD generators ideally supply GC and GC/MS carrier gas, in addition to all known combustion detectors that are routinely used in today's laboratory workflows. Four models operate at flow rates; 160 ml/min, 250 ml/min, 500 ml/min and 1100 ml/min.
A range of tailored service contracts, extended warranties and global manufacturing capabilities provide comprehensive aftermarket support.
Product Specification
| Model | 20H-MD |
| FlowRate ml/min | 160 |
| Purity* % | >99.99995 |
| Water Consumption (24/7,full flow) | 1.69 |
| Delivery Pressure - bar g | 0.69-6.89 |
| Delivery Pressure - psi g | 10-100 |
| Optional Auto Water Fill (AWF) | YES |
Technical Data
| Ambient Temperature range | 5-40 deg C |
| 41-104 deg F | |
| Water Supply Pressure* | 0.1 bag g |
| 1.15 psi g | |
| Water Supply Flow rate* | 1 L/min |
Service & maintenance
We offer a range of services, from instrument service plans to breakdown support. We are also experts in laboratory relocation.
Related Products
The Parker domnick hunter H high purity hydrogen gas generators offer the optimum combination of safe operation, reliability and performance....
The PG Plus 100 Hydrogen Generator provides superior performance with proprietary electrolytic cell technology combined with high quality components and...
The Parker domnick hunter H high purity hydrogen gas generators offer the optimum combination of safe operation, reliability and performance....

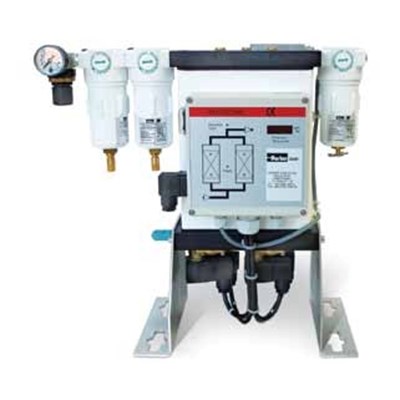

The Parker Zander K-MT-LAB CO2 removal purifier employs, robust, field proven technology to produce ultra high purity CO2 free air...
