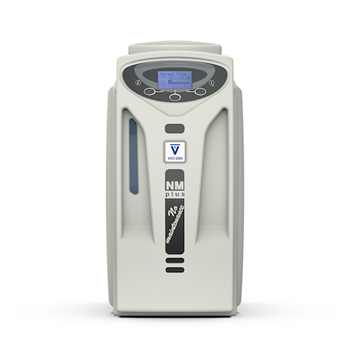

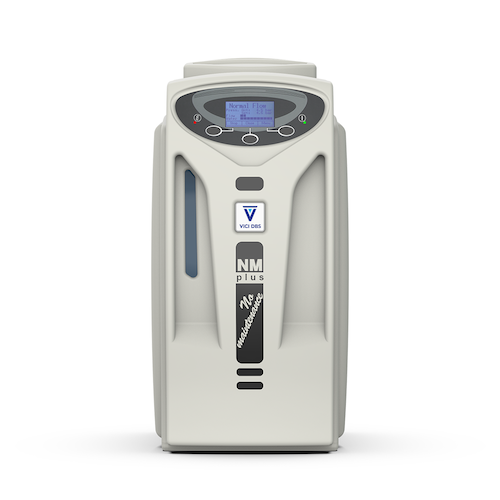

NM Plus 300 Hydrogen Generator

Call for quote

The NM Plus 300 Hydrogen Generator enhances the PG Plus's high performance with a unique no-maintenance purification system, resulting in ultra-high purity carrier-grade gas. In addition, the innovative software control and safety alarm capability maximize the benefits of using hydrogen carrier gas while minimizing safety concerns.

NM PLUS 300 FEATURES:
▪︎ Flow rate 300 mL/min
▪︎ Purity >99.99996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ Unique patented automatic dryer system
▪︎ Unique 100% titanium electrolytic cell
▪︎ No maintenance
▪︎ 2-year standard warranty

Specification

Flow mL/min	300
Purity	>99.99996%
Dew point at 7 barg (100 psig)	-73ºC (-99ºF)
Outlet pressure barg (psig)	1.4 to 11 (20 to 160)
Technology	PEM (Proton Exchange Membrane) - 100% Titanium cell
Drying system	No maintenance cold dual dynamic regeneration system
Deionized water quality	minimum <1 μS/cm @25ºC - 1 MΩ-cm@25ºC - ASTM II recommended <0.2 μS/cm @25ºC - 5 MΩ-cm @25ºC - ASTM II
Internal water tank liters	2.5
Safety	Automatic shut down - internal/external hydrogen leak, overpressure, and low water
Display	Touch screen with operating parameters, system status, and safety alarms
LED indicators	Power on/off, system ready, errors
Interface	USB mod A
Electrical supply	110-120V 60Hz / 220-240V 50Hz
Power consumption watts	205
Product Dimensions mm (in)	230W x 507H x 370D (9W x 19H x 15D)
Product Weight kg (lb)	15 (33)
Shipping dimensions mm (in)	580W x 570H x 400D (22.8W x 22.4H x 15.7D)
Shipping weight kg (lb)	19 (42)
Operating temperature ºC (ºF)	15 to 35 (59 to 95)
Outlet connection	1/8" Compression
Certification	CE, FCC, MET (UL and CSA compliant)

Downloads

VICI DBS NM Plus High Purity Hydrogen Generators.pdf
