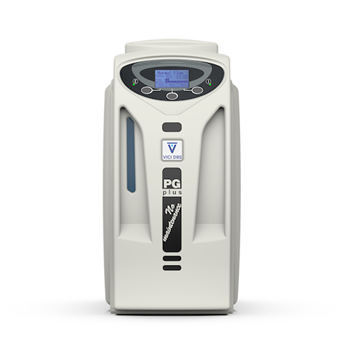

PG Plus 100 Hydrogen Generator

Call for quote

NEW

The PG Plus 100 Hydrogen Generator provides superior performance with proprietary electrolytic cell technology combined with high quality components and a unique hydrogen drying solution.

PG PLUS 100 FEATURES:
▪︎ Flow rate 100 mL/min
▪︎ Purity >99.9996%
▪︎ Pressure up to 11 barg (160 psig)
▪︎ Minimal maintenance
▪︎ Unique drying membrane - no desiccant cartridges required
▪︎ Unique 100% titanium electrolytic cell
▪︎ 2 year standard warranty

Specification

Flow mL/min	100
Purity	>99.9996%
Dew point at 7 barg (100 psig)	-25ºC (-13ºF)
Outlet pressure barg (psig)	0.5 to 11 (7 to 160)
Technology	PEM (Proton Exchange Membrane) - 100% Titanium cell
Drying system	Regenerative Permeation Membrane
Deionized water quality	minimum <1 μS/cm @25ºC - 1 MΩ-cm@25ºC - ASTM II recommended <0.2 μS/cm @25ºC - 5 MΩ-cm @25ºC - ASTM II
Internal water tank liters	2.5
Safety	Automatic shut down - internal/external hydrogen leak, overpressure and low water
Display	Touch screen with operating parameters, system status and safety alarms
LED indicators	Power on/off, system ready, errors
Interface	USB mod A
Electrical supply	110-120V 60Hz / 220-240V 50Hz
Power consumption watts	75
Dimensions mm (in)	230W x 507H x 370D (9W x 19H x 15D)
Product weight kg (lb)	13 (28.5)
Shipping dimensions mm (in)	580W x 570H x 400D (22.8W x 22.4H x 15.7D)
Shipping weight kg (lb)	17 (37.5)
Operating temperature ºC (oF)	15 to 35 (59 to 95)
Outlet connection	1/8" Compression
Certification	CE, FCC, MET (UL and CSA compliant)
